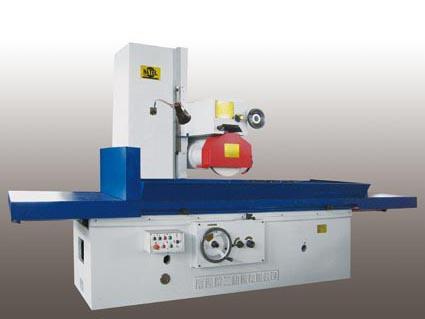

M7150B/M7160Bx16surface grinders

Unit: M7150B/M7160Bx16

DESCRIPTION

These machines are to be hydraulic-controlled for longitudinal travel while the grinding wheel head can be automatically operated or simply by-hand for more efficient movement vertically with an additional speed-up-down device．Be applicable to working kf various spare parts，such as machine processing，car accessories，work tongs and clamping tools，magnetic steel and molding tools，etc…

TECHNICALDATA

Model	M7150B×16	M7160B×16
Max size of workpiece grindable(L×W×H)	1600×500×400	1600×600×400
Longitudinal travel of table(hydraulic)	1800mm	1800mm
Distance from table to spindle center	600mm	600mm
Handwheel Movement of per turn	1mm	1mm
Handwheel Movement of per grid	0.01mm	0.01mm
Max.distance of saddle cross movement	550mm	650mm
Tsble longitudinal hydraulical speed(stepless)	0.5-3m/min	0.5-3m/min
Table intermittent speed(stepless)	3-30m/min	3-30m/min
Wheel spindle speed	1440r/min	1440r/min
Wheel size	Φ400×40×Φ127	Φ400×40×Φ127
Spindle motor power	7.5Kw	7.5Kw
Wheelhead rapid elevating motor power	0.37Kw	0.37Kw
Hydraulic motor power	11Kw	11Kw
Net weight	7500Kg	8000Kg
Parallelism to basic surface	1000：0.015mm	1000：0.015mm
Surface roughness	Ra0.63μm	Ra0.63μm
dimensions	4600×1900×2400	4600×1950×2400

MACHINEACCESSORY

Standard attachment	Special attachment
Etandard attachment	Demagnetizer
Wheel balancing arbor	Wheel balancing device
Wheel dresser(without diamond)	Spare adoptor
Machine tool spacer
Wheel adoptor

The descriptions,illustrations and specifications give in the pamphiet are subject to alteration without notice.
